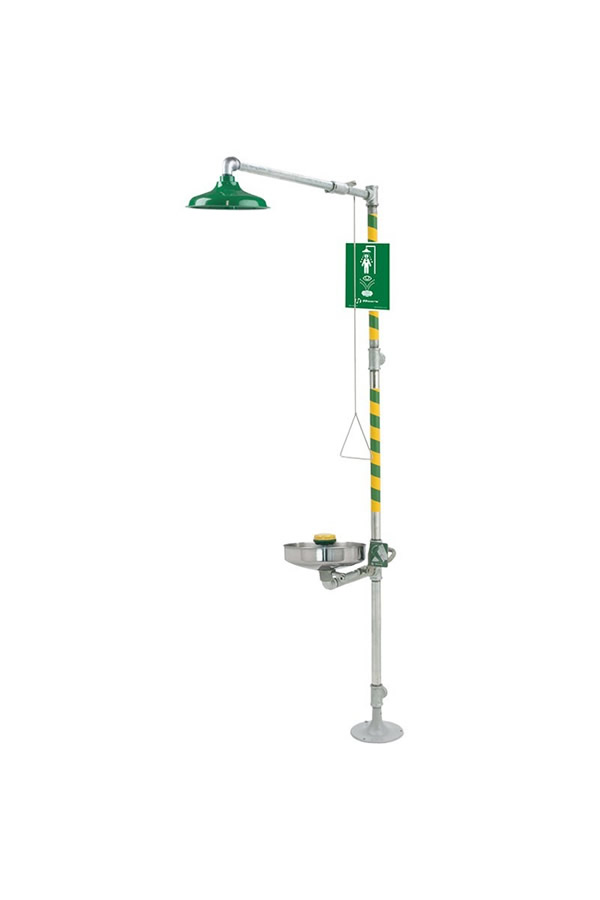

EYE WASH STATION – EMERGENCY SHOWER (STAINLESS STEEL)
- Shower Valve: 1” 304 stainless steel ball valve
- Eye Wash Valve: 1/2” stainless steel ball valve
- Head: 10” stainless steel
- Eye Wash Nozzle: Green ABS spraying with 10” ABS waste water recycle bowl
- Supply: 1 FNPT
- Waste: 1 FNPT
- Eye Wash Flow ≥11.4 L/Min, shower flow≥75.7 L/Min
- Hydraulic Pressure: 0.2MPA-0.8MPA
- Original Water: Drinking water or filtered water
- Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
- Special Note: If the acid concentration is too high, recommend to use 316 stainless steel.
- When using ambient temperature below 00C, use antifreeze eye wash.
- The eye wash & shower is made of high quality 304 stainless steel, the inner wall is polished and it will not keep the water impurities, especially for the laboratory, medical and food industries.
- Can install anti-scalding device to avoid the media temperature is too high in the pipe after
- the sun exposure and cause user scalding.The standard anti-scalding temperature is 350C.
- Standard: ANSI Z358.1-2014
With alarming statistics of casualties at the workplace, equipping work places with appropriate response tools is crucial. Steps to ensure safety at the workplace can include adequate signage about safety and making sure that employees are well trained. Equipment for preventing injury and mitigating damage once caused must be a priority.
|COUNTRY OF ORIGIN||
CHINA / INDIA
